Concrete spalling is a silent threat to the structural integrity and aesthetics of Sydney’s high-rise facades. When left unchecked, it can rapidly progress from minor surface blemishes to significant safety risks. This article provides a comprehensive, image-driven guide to identifying early signs of concrete spalling in urban buildings, especially those difficult-to-access structures that CPR Facade Upgrade Specialists are uniquely positioned to remediate.

What Is Concrete Spalling?

Concrete spalling refers to the flaking, chipping or crumbling of concrete, typically caused by the corrosion of embedded steel reinforcement. Moisture, chlorides, and carbon dioxide penetrate the concrete, leading to rust, expansion, and surface delamination.

Why High-Rise Buildings in Sydney Are Vulnerable

Sydney’s coastal location exposes high-rise buildings to salt-laden air and moisture, accelerating corrosion of steel reinforcement. Over time, this leads to widespread spalling if not addressed. The combination of age, pollution, and inconsistent facade maintenance further heightens the risk of damage.

7 Early Visual Signs of Concrete Spalling

1. Discoloured Patches or Rust Stains

Brown or reddish streaks across facade panels often indicate that steel within is corroding.

2. Hairline Cracks

While small, these cracks may penetrate the concrete cover and reach the steel, especially around balcony edges and slab corners.

3. Bulging or Blistering Concrete

Areas that appear raised or puffed often signal internal pressure from rusting rebar.

4. Spalling Flakes or Chips on the Ground

Finding small pieces of concrete on walkways or rooftops below the facade is a clear warning sign.

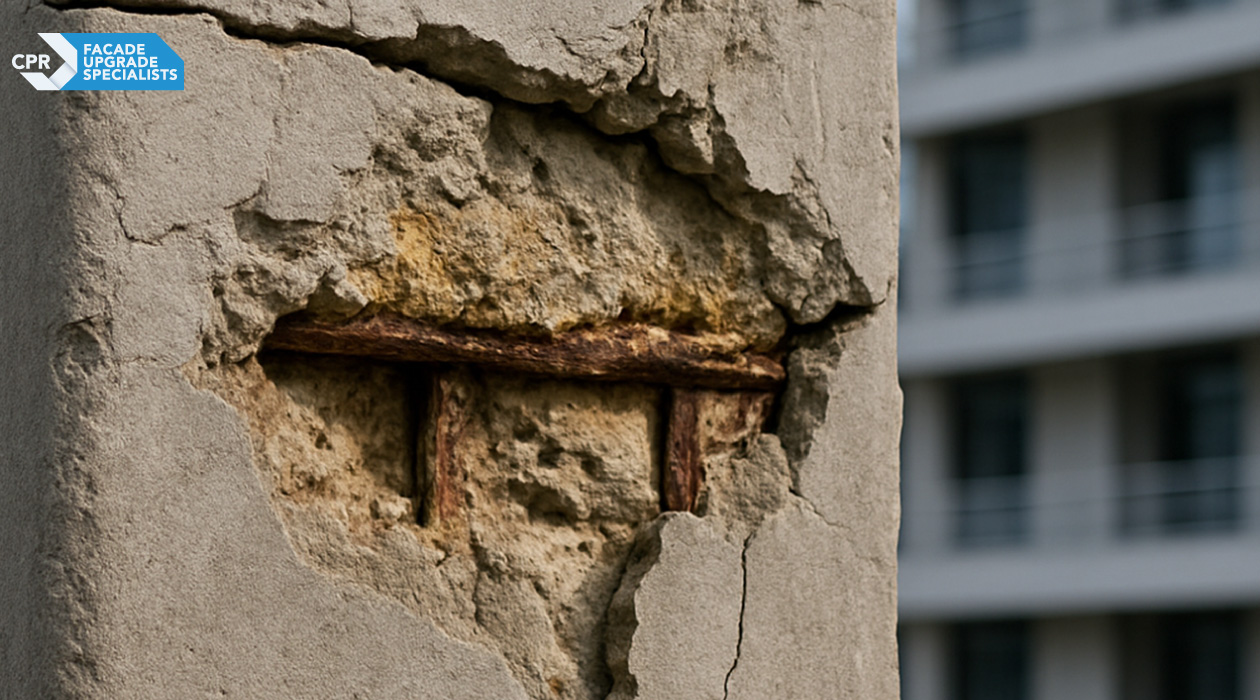

5. Exposed Reinforcement

When concrete spalls off entirely, rusting rebar becomes visible—a sign of advanced degradation.

6. Surface Hollow Sound When Tapped

Hollow or drummy sounds during hammer tap testing can help detect hidden voids.

7. Uneven Paint or Coating Bubbling

Failing coatings can indicate moisture ingress behind facade layers, a precursor to corrosion and spalling.

Why Early Detection Matters

Early detection is not just about aesthetics. It’s about public safety, asset value, and regulatory compliance under Australian building standards. Timely facade inspection and diagnosis are crucial in urban areas where pedestrian and resident safety is a non-negotiable priority.

Tools & Techniques for Inspection

Rope Access & Grid Mapping

CPR’s Upseiling® Inspection Team divides building facades into mapped grids using our patented Scaffold-Free™ methods, MARS™ and PEARS®, to deliver precise, high-access diagnostics without disturbing occupants.

SFS360® Inspections

Using our Sky Facade Scope 360™ system, every sign of damage is logged, photographed, and rated by severity, helping strata committees make informed decisions about concrete remediation.

Causes of Concrete Spalling in Sydney High-Rises

  • Salt-laden Air: Increases risk of steel corrosion.
  • Water Ingress: Through failed sealants or cracks.
  • Carbonation: Atmospheric CO2 lowers concrete pH.
  • Structural Movement: Adds stress to exposed sections.
  • Poor Construction Practices: Inadequate cover depth or quality.

CPR’s Approach to Facade Deterioration

CPR Facade Upgrade Specialists use a complete lifecycle strategy of Consultancy, Remediation, and Preservation. From initial diagnosis with SFS360® to executing scaffold-free concrete repairs and long-term protection, our SE2EPC® Project Care system ensures durability and safety.

Our Technologies That Make a Difference

  • MARS™: Multiple Access Rope System for anchor-based vertical work.
  • PEARS®: Portable Elevation Access Rope System, enabling power-assisted mobility.
  • SkyPod®: Encapsulated, ergonomic remedial workstations.

These innovations allow fast, quiet, and precise concrete repairs without disrupting building residents or requiring costly scaffolding.

Case in Point: Birkenhead Quays

Located on Sydney’s Parramatta River, Birkenhead Quays suffered concrete spalling due to salt exposure. CPR used its proprietary systems to carry out sealant replacement and concrete repair in just 15 weeks—two months ahead of schedule, without scaffolding or resident complaints.

Partner with CPR to Protect Your High-Rise Asset

Don’t wait until damage escalates. If you’re responsible for a Sydney high-rise—strata manager, engineer, facility manager—early inspection and intervention are key.

Discover our complete approach to concrete repairs and durability treatments to see how we protect and preserve high-rise assets across Sydney.

Book a facade remediation and preservation consultation today to secure your building’s value and ensure safety for all.
